SINGLE-FAN ROOFTOP COOLING · 12V / 24V

CU2700
Parking air conditioner.

Name: VETHY CU2700
Brand: VETHY

DC inverter twin-rotary cooling with a single brushless condenser fan and the Model A indoor panel. Left and right outlets oscillate independently.

Request a fleet quotation View specifications

Specify the vehicle, voltage and installation space for a configuration review.

Outdoor unit & indoor panel

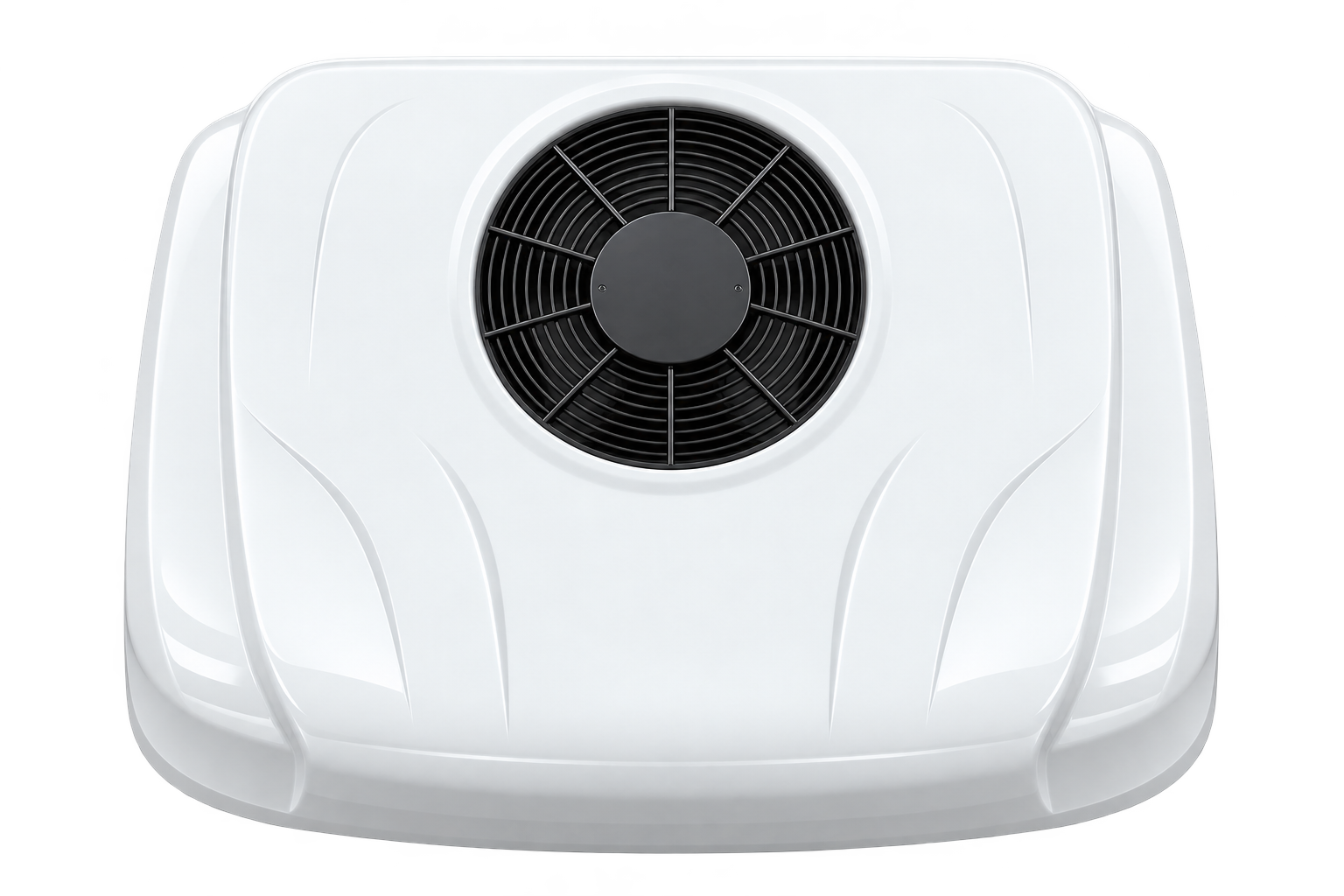

VETHY CU2700 outdoor unit — Outdoor unit / panel — CU2700

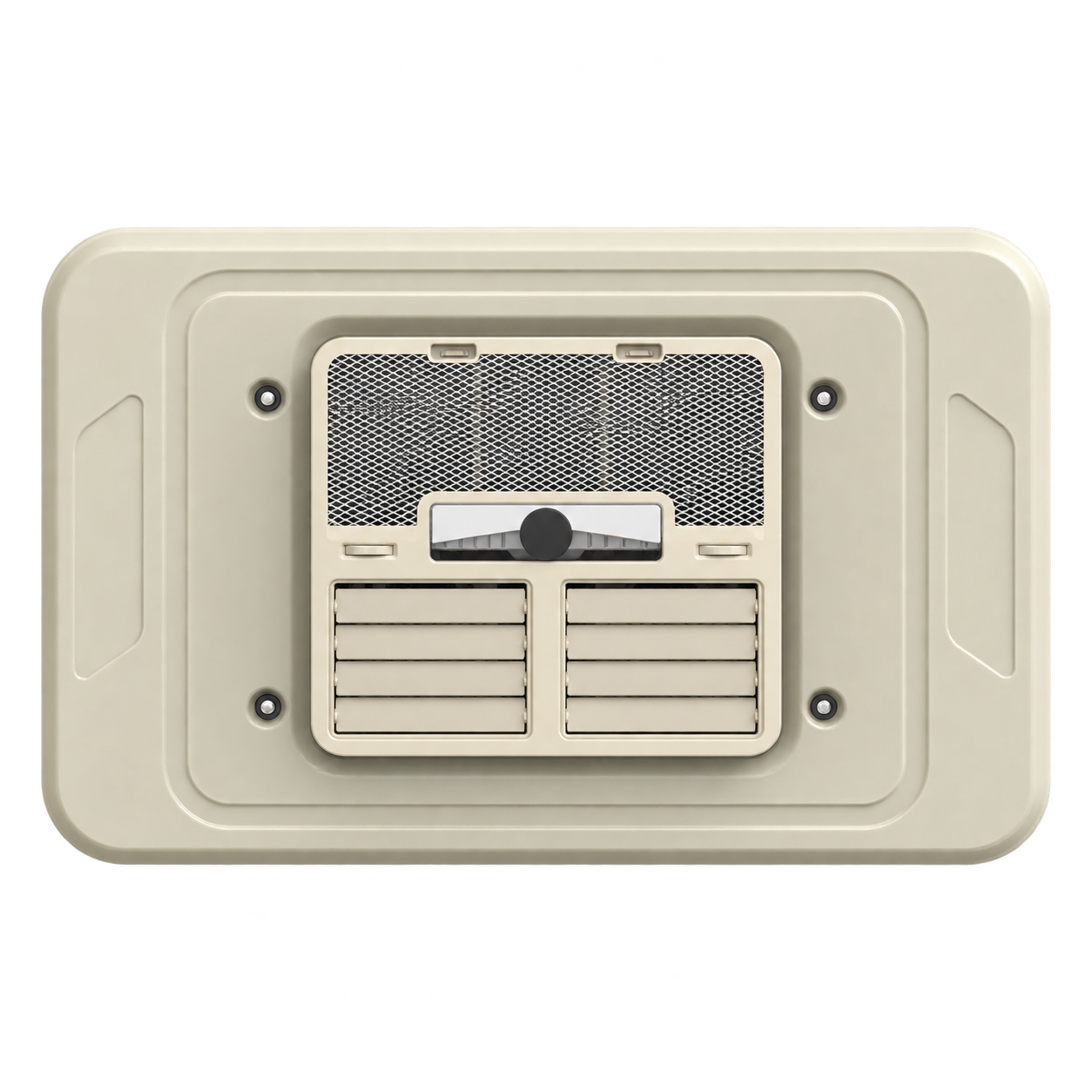

VETHY CU2700 indoor unit — Indoor unit / panel — CU2700

MODEL-SPECIFIC DATA

CU2700 specifications

Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.

Electrical and cooling ratings
Parameter	12V DC	24V DC
Cooling capacity	2200 W	2700 W
Rated electrical input	800 W	800 W
Rated current	20–40 A (35°C ambient)	9–33 A (35°C ambient)
Maximum EER	3.4	3.4

Construction, airflow and dimensions
Compressor	Twin-rotary compressor
Refrigerant	R134a
Refrigerant charge	580 ± 10 g
Evaporator airflow	450 m³/h / Brushless fan
Condenser airflow	2500 m³/h / Brushless single fan
Temperature setting range	16–36 °C
Air outlet control	Independent left/right electric oscillation / Model A air distribution panel
Refrigeration oil	POE68
Net weight	32.5 kg
Gross weight	38 kg
Outdoor dimensions (L × W × H)	728 × 900 × 169 mm
Indoor panel dimensions	860 × 550 mm
Minimum installation opening	380 × 490 mm
Packaging dimensions	990 × 780 × 380 mm

12V and 24V are separate configurations. Select the required voltage when ordering.

Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.

16–36°C is the temperature setting range. Current ratings are stated at 35°C ambient; this is not an operating-temperature envelope.

PRODUCT & SPECIFICATION GRAPHIC

One model. Matching images and ratings.

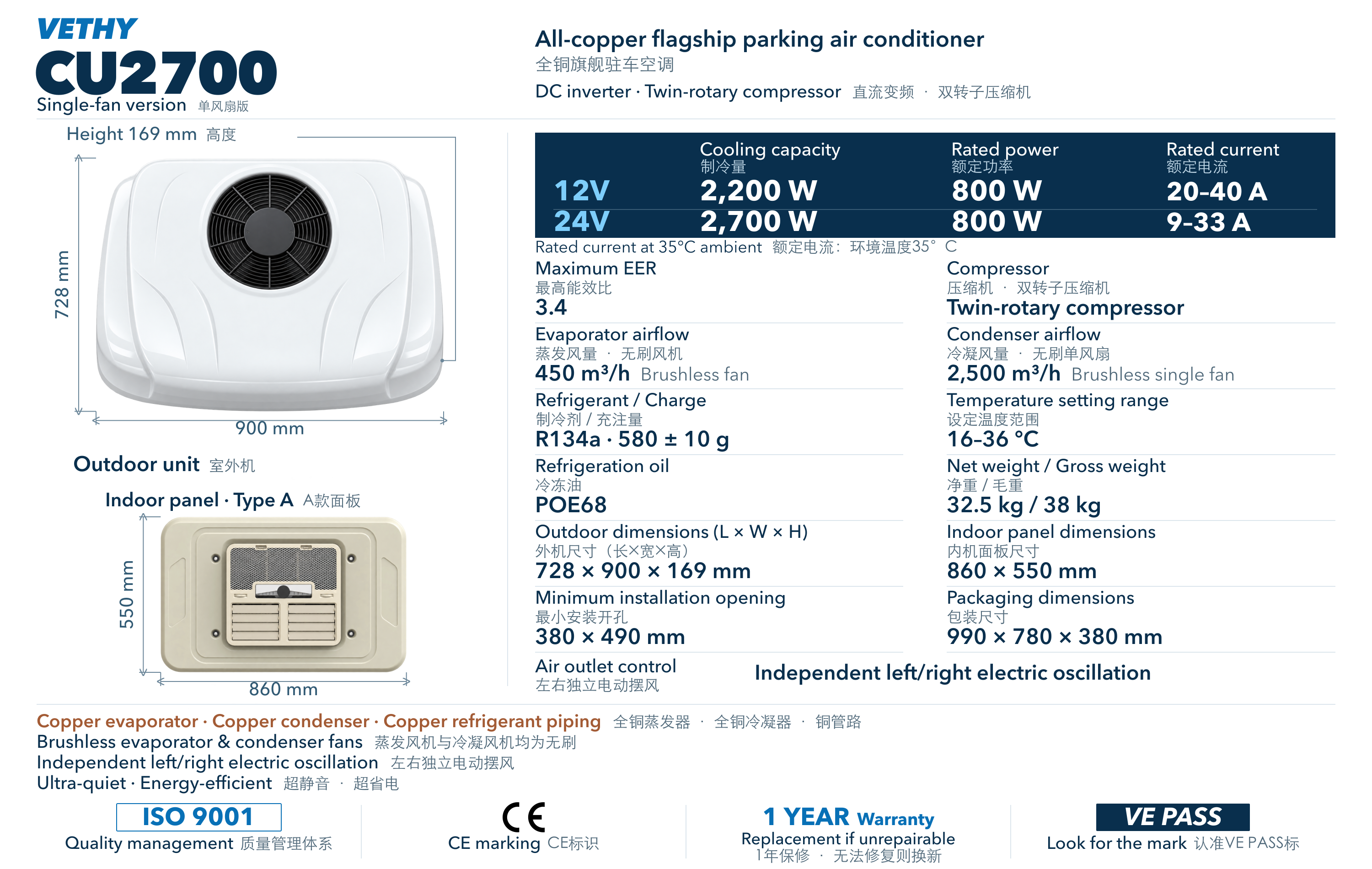

VETHY CU2700 complete product and parameter graphic, showing both voltage configurations

Select the graphic to open the full-size original.

Download CU2700 specification graphic

Plan the vehicle installation

Send the vehicle make, model, year, cab photos, available mounting space and electrical supply. Confirm roof structure, clearance, wiring protection and service access before choosing the installation arrangement.

For fleet procurement, include pilot quantity, annual demand, destination and required spare parts. Request a configuration-specific quotation and sample acceptance plan.
