ROOFTOP COOLING · 12V / 24V

NANO MAX
Parking air conditioner.

Name: VETHY NANO MAX
Brand: VETHY

A 165 mm outdoor-unit height, GMCC rotary compressor and automatic oscillation. Check the specified installation opening against the vehicle roof.

Request a fleet quotation View specifications

Specify the vehicle, voltage and installation space for a configuration review.

Outdoor unit & indoor panel

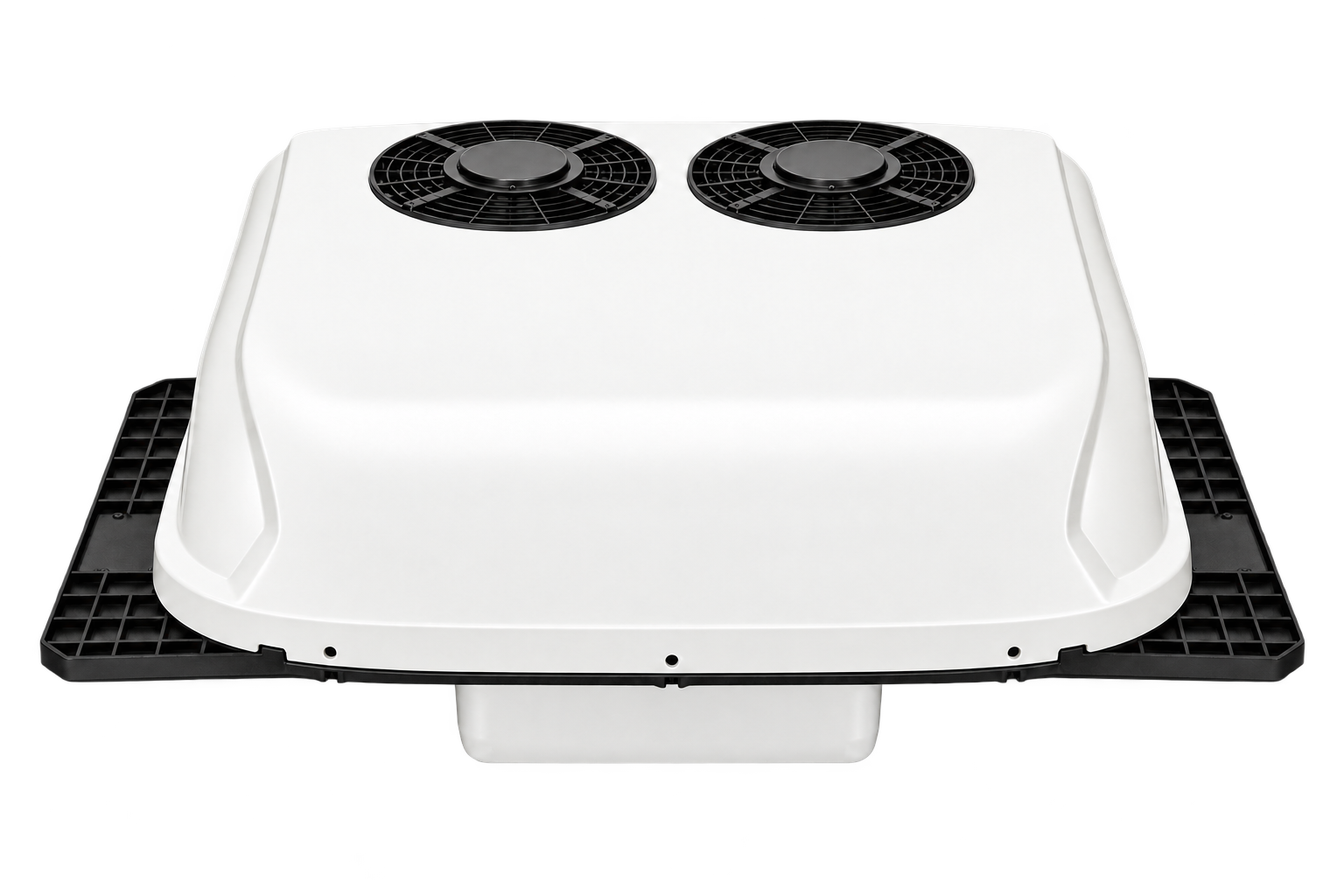

VETHY NANO MAX outdoor unit — Outdoor unit / panel — NANO MAX

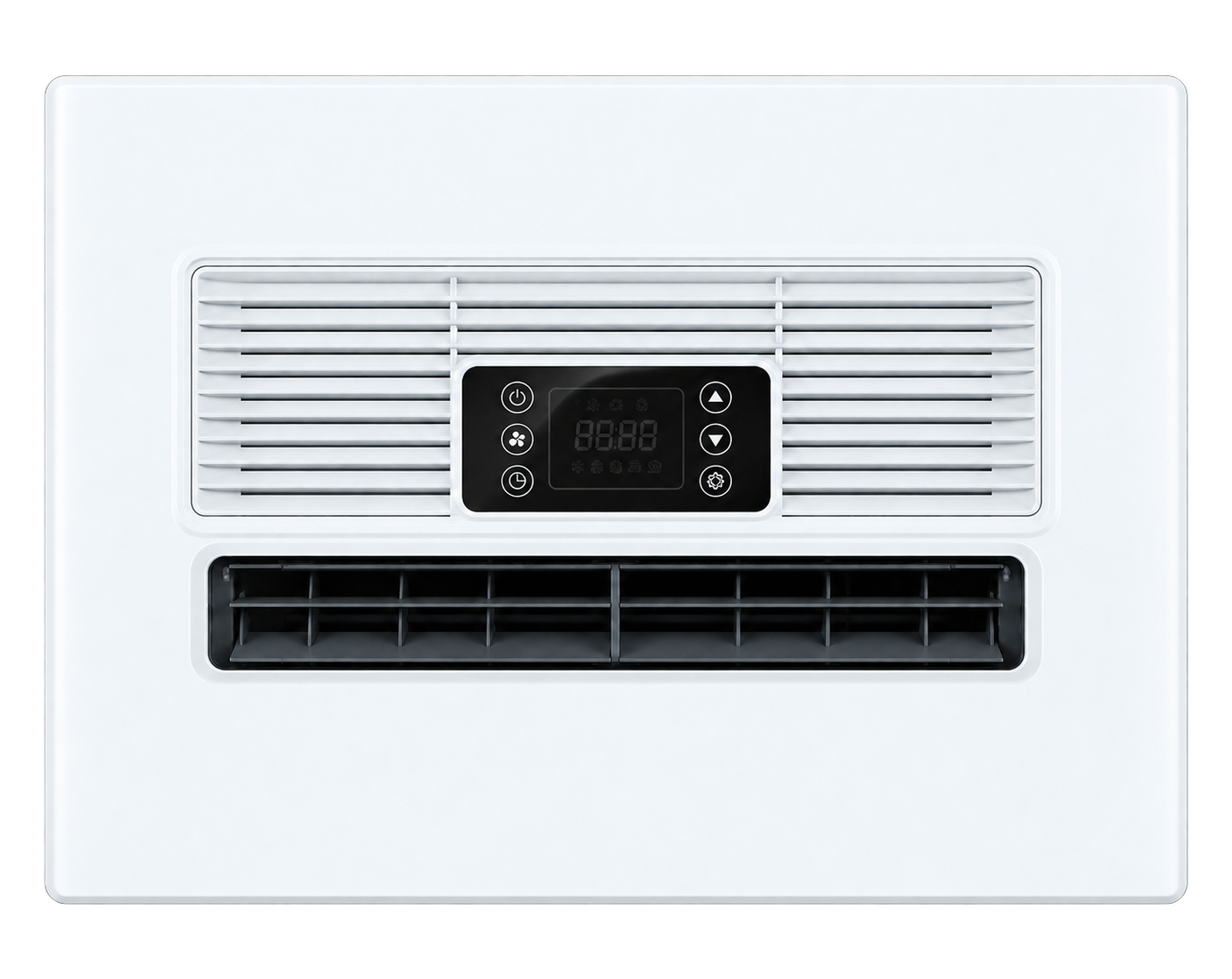

VETHY NANO MAX indoor unit — Indoor unit / panel — NANO MAX

MODEL-SPECIFIC DATA

NANO MAX specifications

Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.

Electrical and cooling ratings
Parameter	12V DC	24V DC
Cooling capacity	1950 W	2200 W
Cooling capacity (sheet BTU rating)	7000 BTU/h	8000 BTU/h
Rated electrical input	240–600 W	300–840 W
Rated current	25–50 A	10–33 A

Construction, airflow and dimensions
Compressor system	R134a rotary compressor
Compressor brand	GMCC
Airflow	550 m³/h
Refrigerant	R134a
Outdoor unit dimensions	749 × 749 × 165 mm
Indoor unit dimensions	560 × 445 mm
Installation opening	450 × 300 mm
Air output method	Automatic oscillation
Package weight	27 kg

12V and 24V are separate configurations. Select the required voltage when ordering.

Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.

W and BTU figures are reproduced as listed in the specification graphic; no conversion has been substituted.

PRODUCT & SPECIFICATION GRAPHIC

One model. Matching images and ratings.

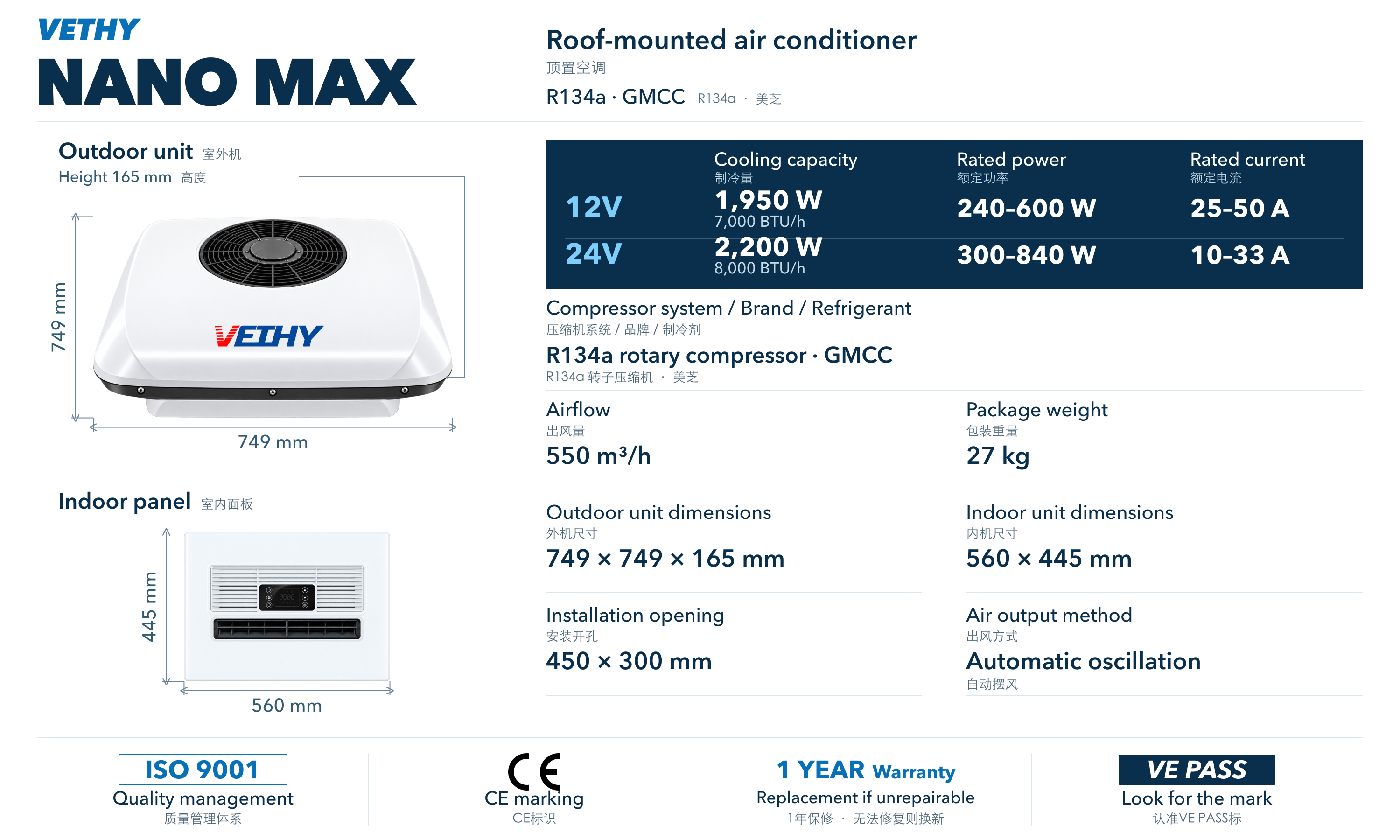

VETHY NANO MAX complete product and parameter graphic, showing both voltage configurations

Select the graphic to open the full-size original.

Download NANO MAX specification graphic

Plan the vehicle installation

Send the vehicle make, model, year, cab photos, available mounting space and electrical supply. Confirm roof structure, clearance, wiring protection and service access before choosing the installation arrangement.

For fleet procurement, include pilot quantity, annual demand, destination and required spare parts. Request a configuration-specific quotation and sample acceptance plan.
