ROOFTOP COOLING · 12V / 24V

ZH1200
Parking air conditioner.

Name: VETHY ZH1200
Brand: VETHY

R410A cooling with a GMCC twin-cylinder rotary compressor, brushless fans and automatic oscillation. Net and gross weights are stated separately.

Request a fleet quotation View specifications

Specify the vehicle, voltage and installation space for a configuration review.

Outdoor unit & indoor panel

VETHY ZH1200 outdoor unit — Outdoor unit / panel — ZH1200

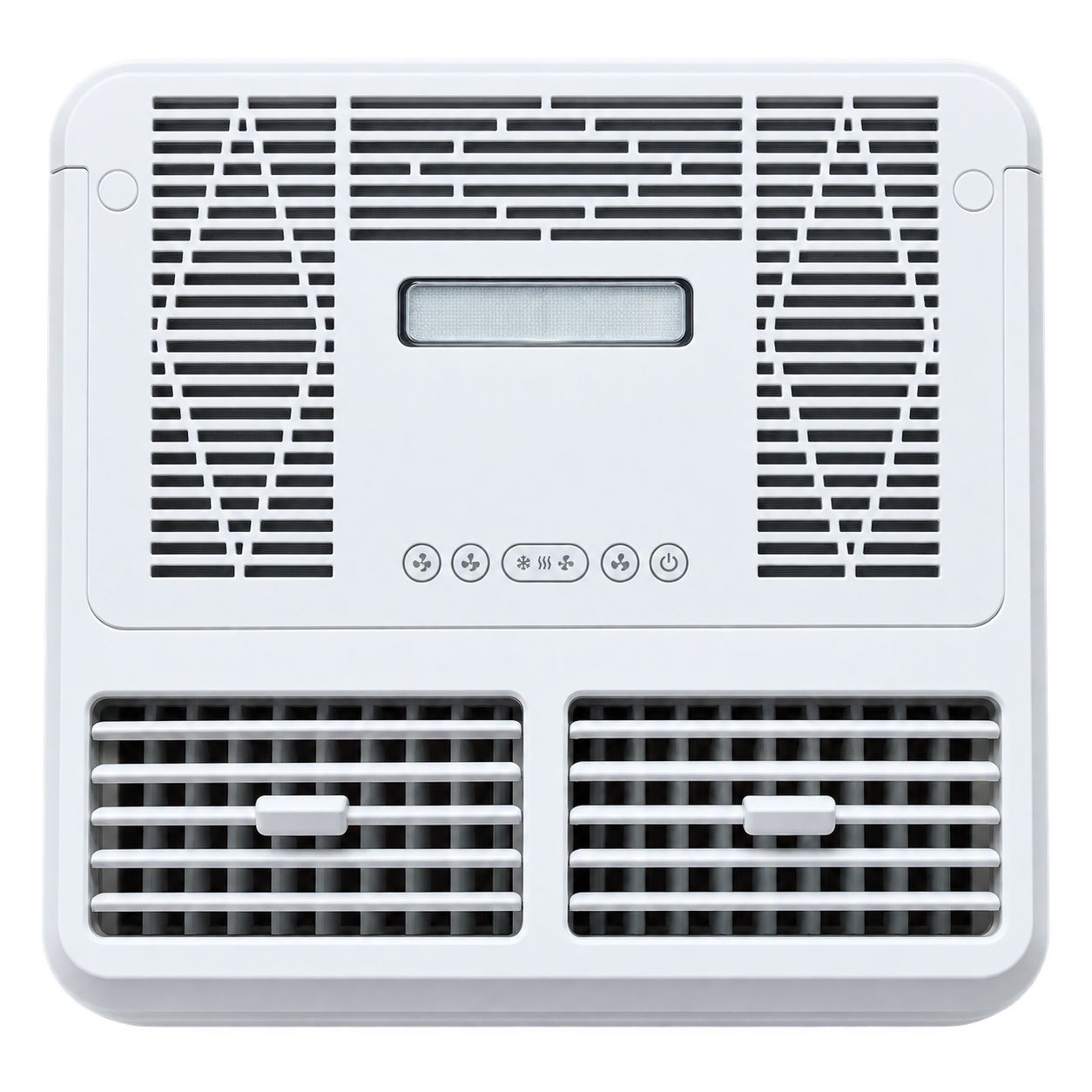

VETHY ZH1200 indoor unit — Indoor unit / panel — ZH1200

MODEL-SPECIFIC DATA

ZH1200 specifications

Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.

Electrical and cooling ratings
Parameter	12V DC	24V DC
Cooling capacity	2000 W	2400 W
Cooling capacity (sheet BTU rating)	7000 BTU	8200 BTU
Rated electrical input	240–600 W	300–840 W
Rated current	25–50 A	10–33 A

Construction, airflow and dimensions
Compressor system	R410A twin-cylinder rotary compressor
Compressor brand	GMCC
Evaporator airflow / Brushless fan	450 m³/h
Condenser airflow / Brushless fan	4000 m³/h
Refrigerant	R410A
External dimensions	925 × 873 × 205 mm
Internal dimensions	350 × 350 mm
Air output method	Automatic oscillation
Net weight	37 kg
Gross weight	40 kg

12V and 24V are separate configurations. Select the required voltage when ordering.

Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.

W and BTU figures are reproduced as listed in the specification graphic; no conversion has been substituted.

PRODUCT & SPECIFICATION GRAPHIC

One model. Matching images and ratings.

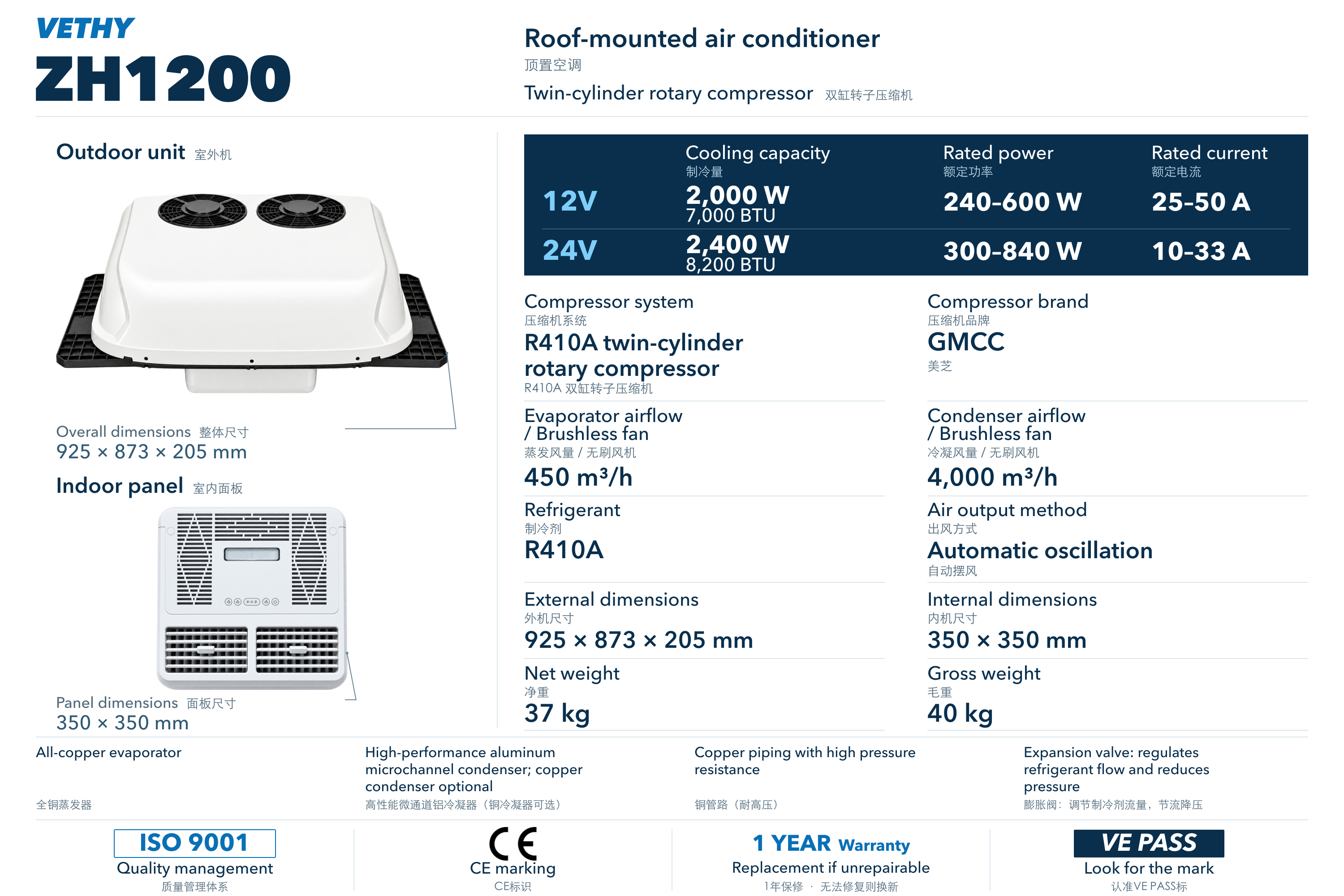

VETHY ZH1200 complete product and parameter graphic, showing both voltage configurations

Select the graphic to open the full-size original.

Download ZH1200 specification graphic

Plan the vehicle installation

Send the vehicle make, model, year, cab photos, available mounting space and electrical supply. Confirm roof structure, clearance, wiring protection and service access before choosing the installation arrangement.

For fleet procurement, include pilot quantity, annual demand, destination and required spare parts. Request a configuration-specific quotation and sample acceptance plan.

Discuss ZH1200 with VETHY
