ROOFTOP COOLING · 12V / 24V
K201 PRO
Parking air conditioner.
R134a cooling with a scroll compressor, a 160 mm outdoor-unit height and manual / automatic air outlet control.
Specify the vehicle, voltage and installation space for a configuration review.

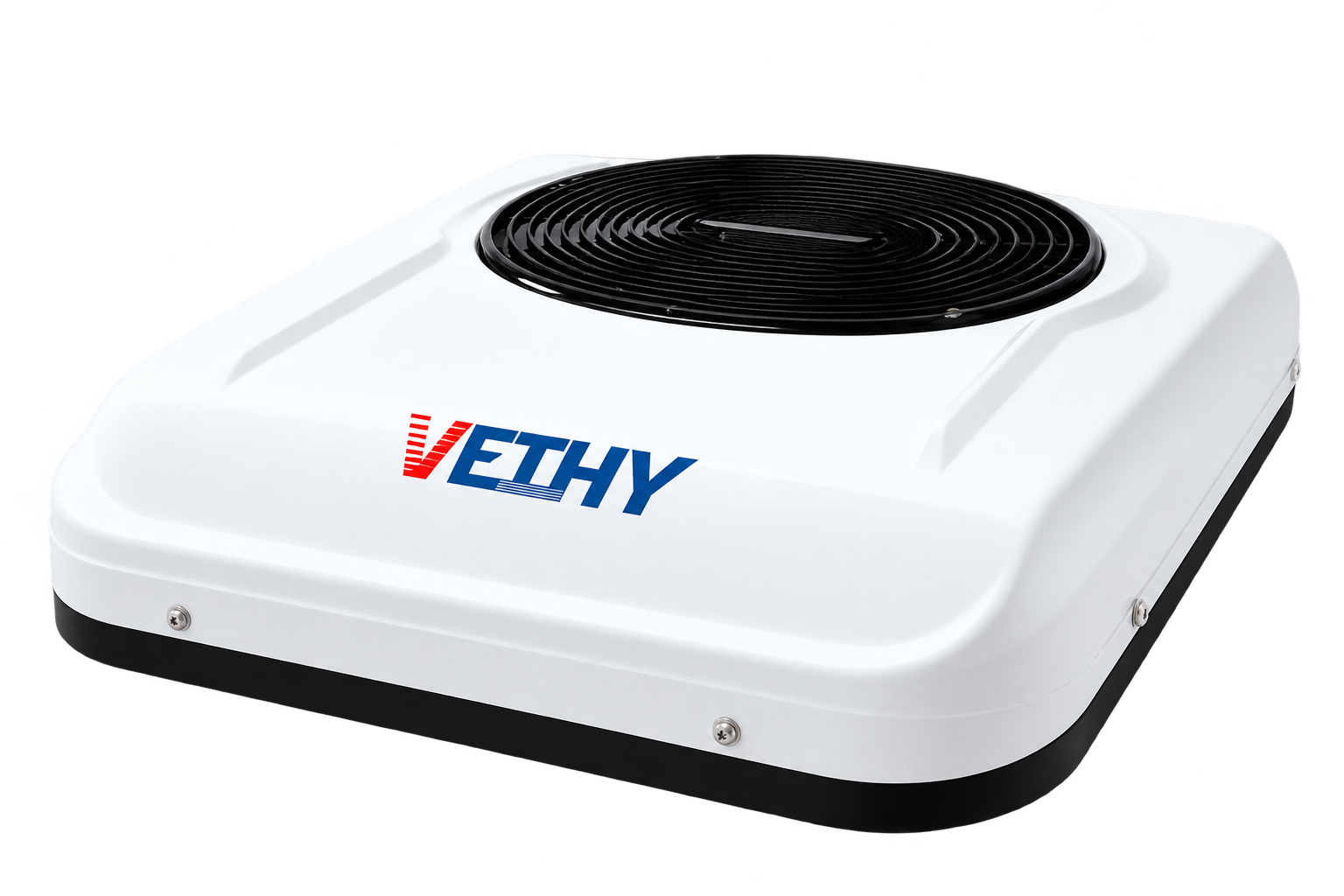

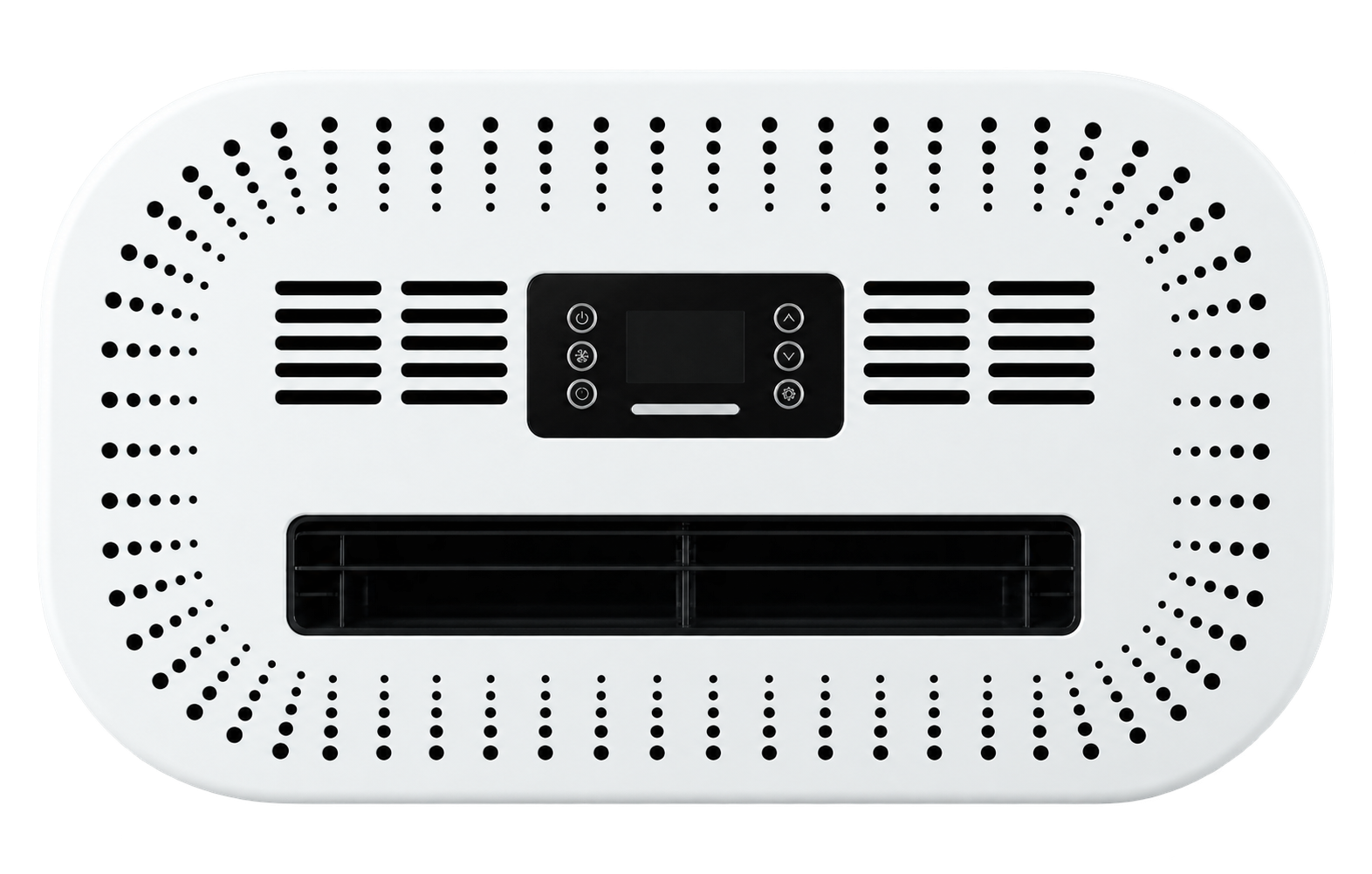

Outdoor unit & indoor panel
MODEL-SPECIFIC DATA
K201 PRO specifications
Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.
| Parameter | 12V DC | 24V DC |
|---|---|---|
| Cooling capacity (sheet BTU rating) | 7000 BTU | 8600 BTU |
| Rated electrical input | 600–800 W | 600–800 W |
| Rated current | 45–60 A | 15–30 A |
| Compressor | Scroll |
|---|---|
| Refrigerant | R134a |
| Airflow | 500 m³/h |
| Outdoor unit dimensions | 700 × 650 × 160 mm |
| Indoor panel dimensions | 550 × 350 mm |
| Air output method | Manual / Automatic |
| Package weight | 25 kg |
12V and 24V are separate configurations. Select the required voltage when ordering.
Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.
W and BTU figures are reproduced as listed in the specification graphic; no conversion has been substituted.

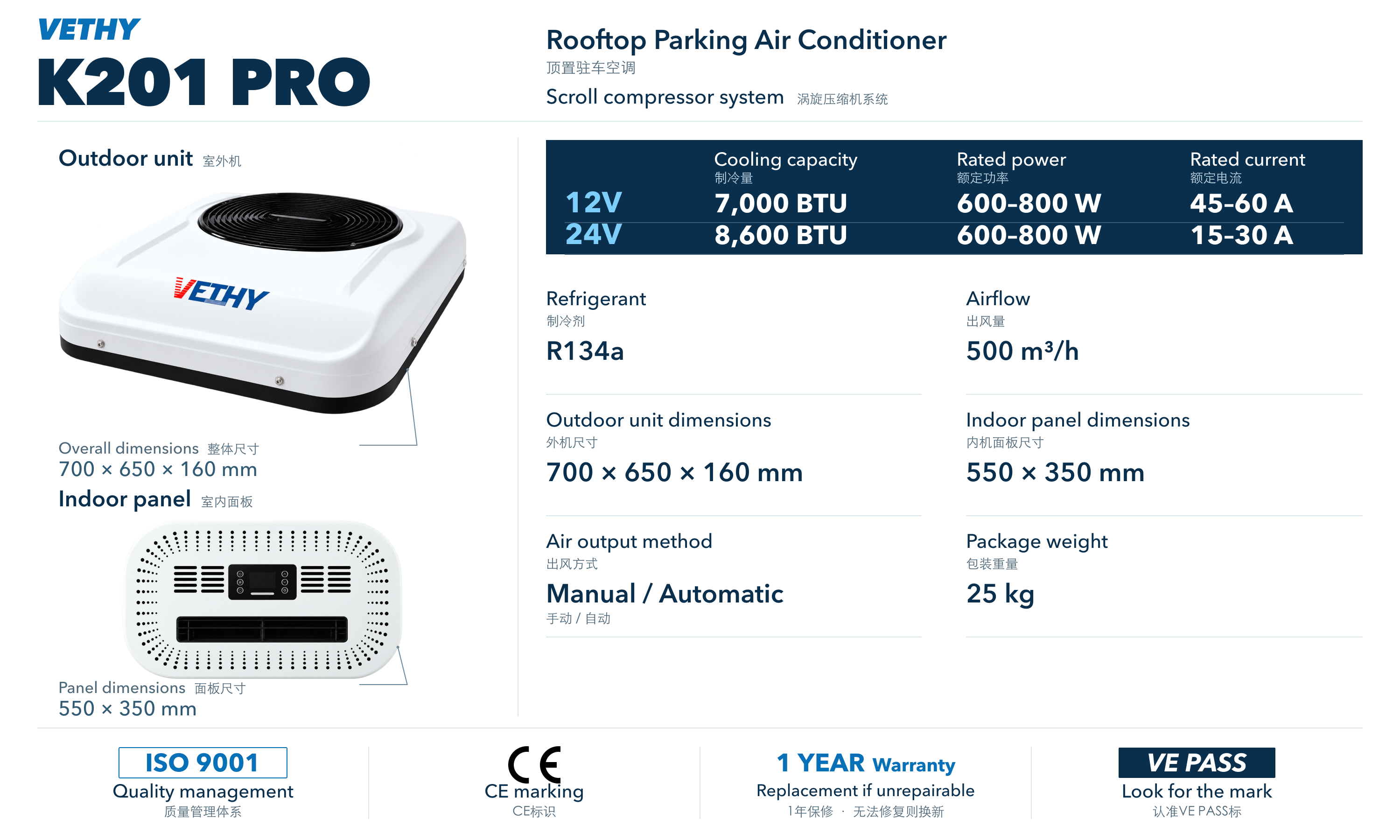

PRODUCT & SPECIFICATION GRAPHIC
One model. Matching images and ratings.
Select the graphic to open the full-size original.
Download K201 PRO specification graphicPlan the vehicle installation
Send the vehicle make, model, year, cab photos, available mounting space and electrical supply. Confirm roof structure, clearance, wiring protection and service access before choosing the installation arrangement.
For fleet procurement, include pilot quantity, annual demand, destination and required spare parts. Request a configuration-specific quotation and sample acceptance plan.
Discuss K201 PRO with VETHYCompare the range

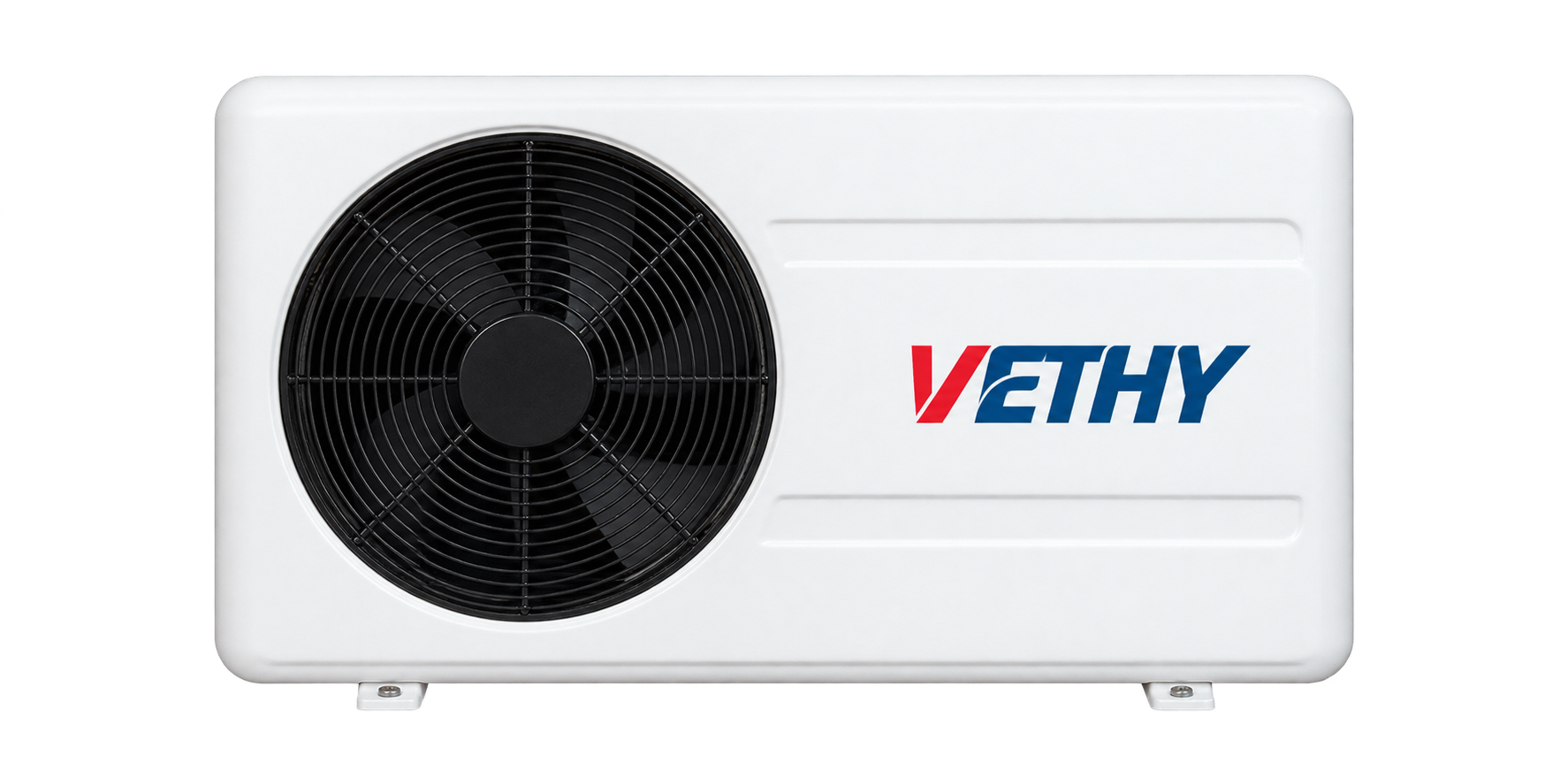

VX3000SP
12V cooling: 7000 BTU/h
12V and 24V specifications

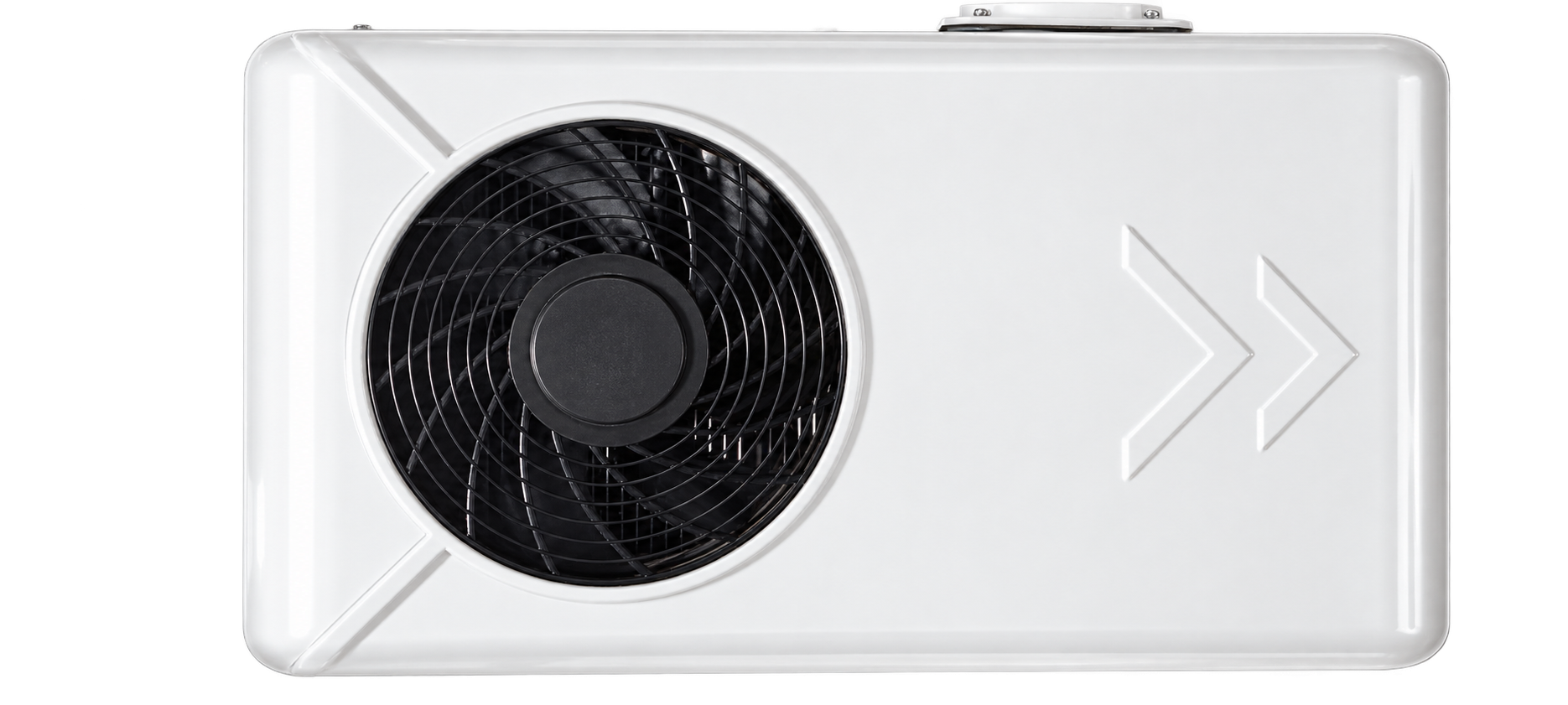

EcoMax 3S
12V cooling: 2200 W
12V and 24V specifications

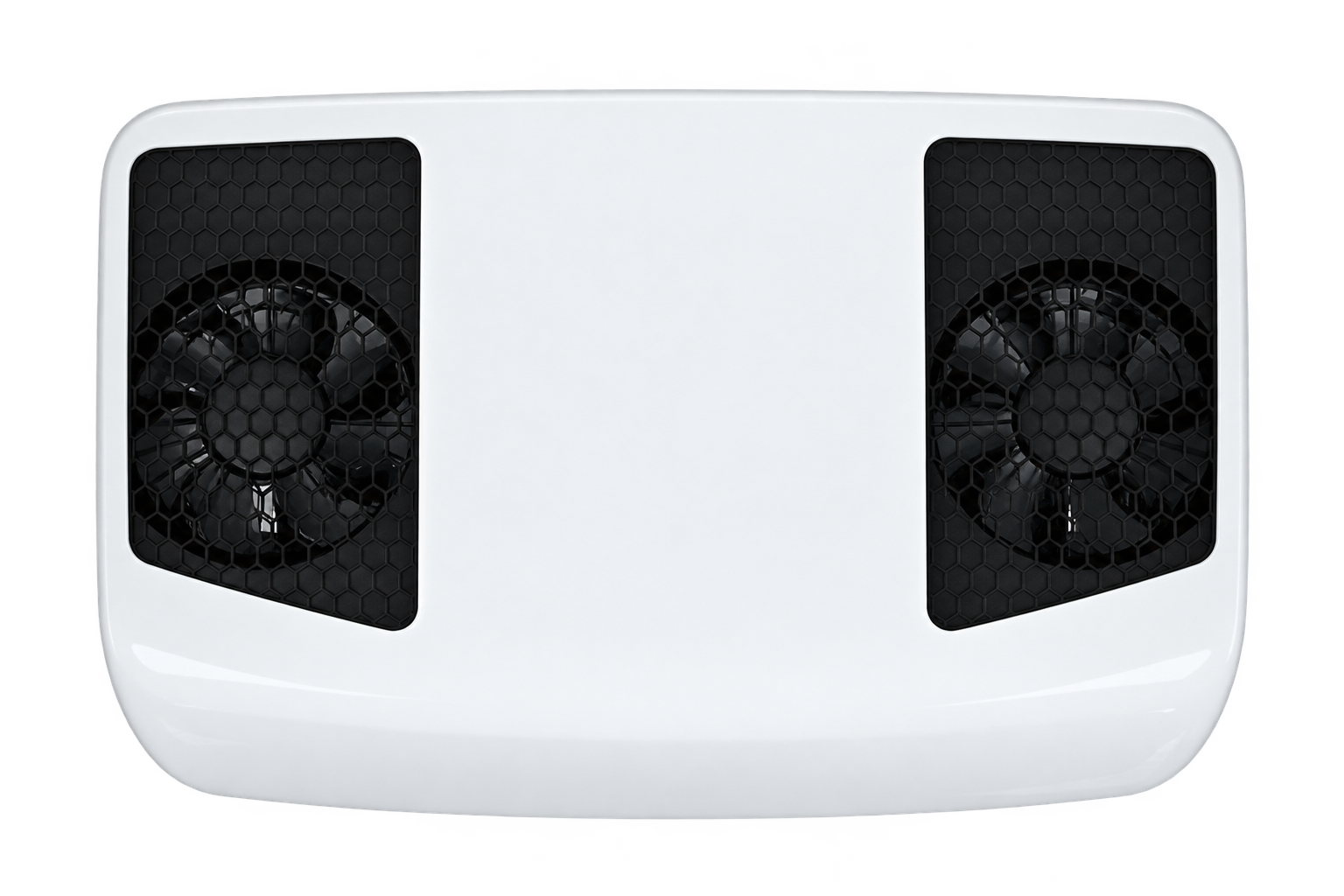

VS02-PRO
12V cooling: 2200 W
12V and 24V specifications

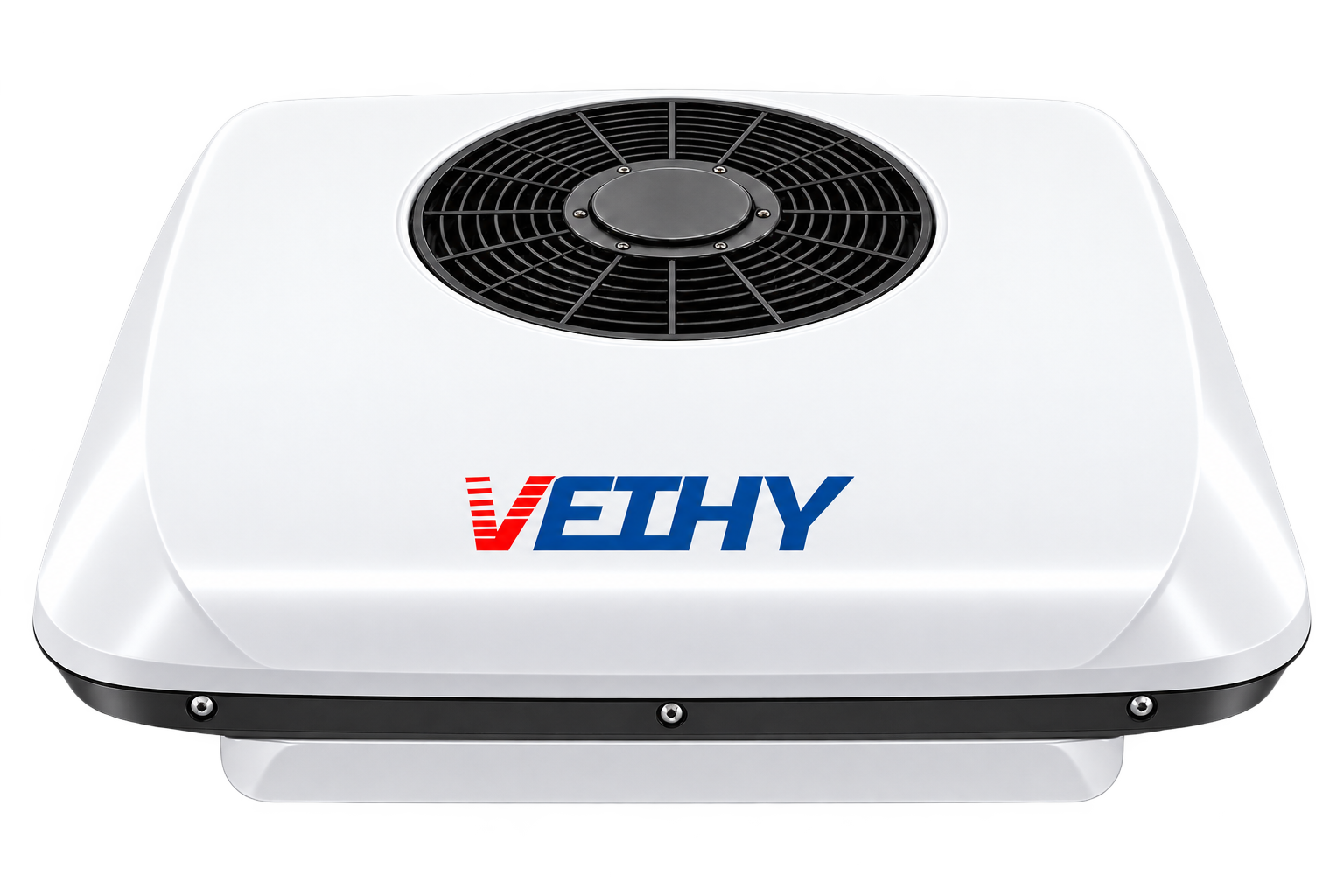

NANO MAX
12V cooling: 1950 W
12V and 24V specifications
