ROOFTOP COOLING · 12V / 24V

VS02-PRO
Parking air conditioner.

Name: VETHY VS02-PRO
Brand: VETHY

R410A cooling with a Rechi twin-cylinder rotary compressor, brushless evaporator and condenser fans, and automatic oscillation.

Request a fleet quotation View specifications

Specify the vehicle, voltage and installation space for a configuration review.

Outdoor unit & indoor panel

VETHY VS02-PRO outdoor unit — Outdoor unit / panel — VS02-PRO

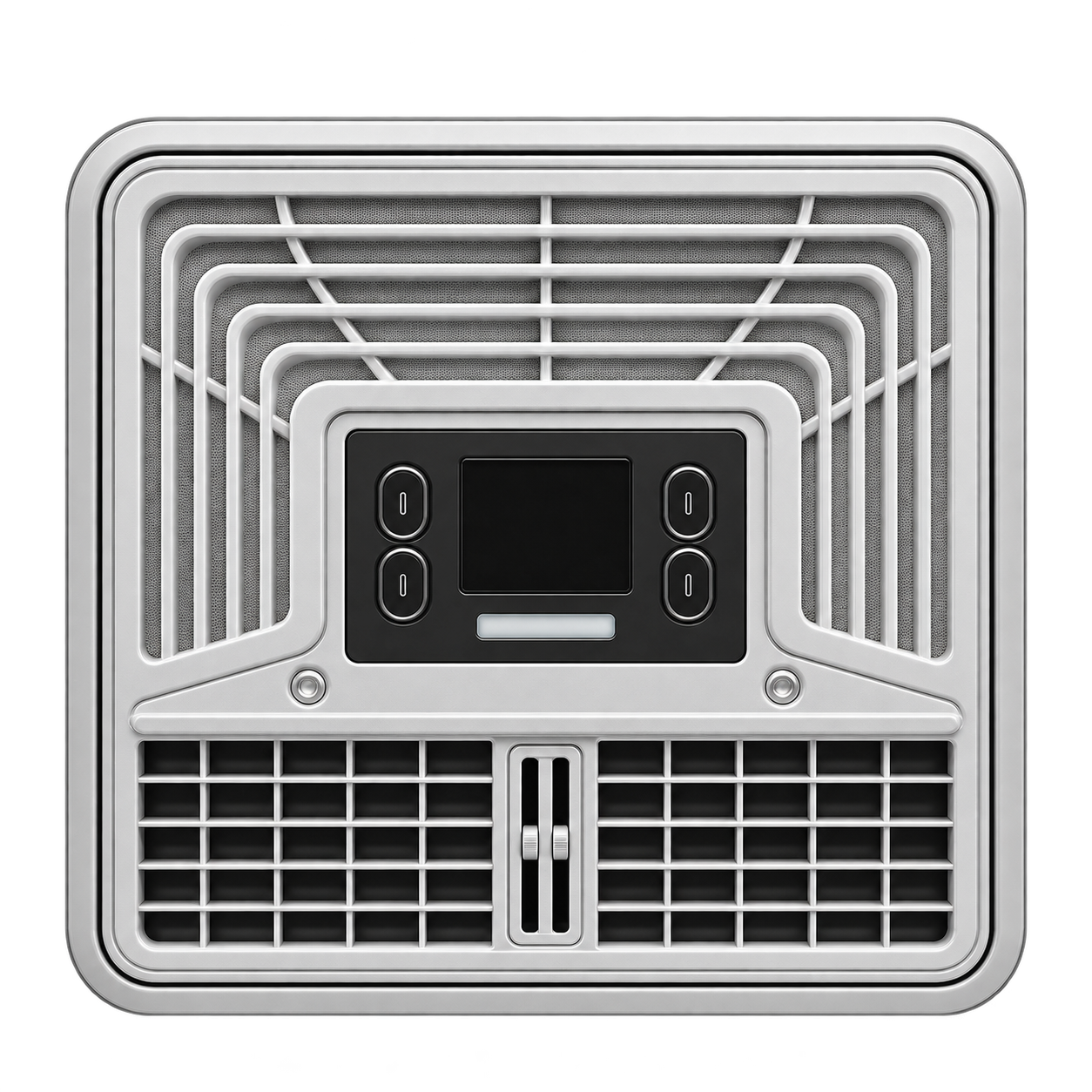

VETHY VS02-PRO indoor unit — Indoor unit / panel — VS02-PRO

MODEL-SPECIFIC DATA

VS02-PRO specifications

Compare the 12V and 24V configurations below. The complete product graphic is available in the next section.

Electrical and cooling ratings
Parameter	12V DC	24V DC
Cooling capacity	2200 W	2600 W
Cooling capacity (sheet BTU rating)	7500 BTU	9000 BTU
Rated electrical input	240–600 W	300–840 W
Rated current	25–50 A	10–33 A

Construction, airflow and dimensions
Compressor system	R410A twin-cylinder rotary compressor
Compressor brand	Rechi
Evaporator airflow / Brushless fan	550 m³/h
Condenser airflow / Brushless fan	4500 m³/h
Refrigerant	R410A
External dimensions	980 × 680 × 185 mm
Internal dimensions	350 × 350 × 185 mm
Air output method	Automatic oscillation
Package weight	38 kg

12V and 24V are separate configurations. Select the required voltage when ordering.

Dimensions retain the order shown in the specification graphic. Confirm mounting details for the individual vehicle.

W and BTU figures are reproduced as listed in the specification graphic; no conversion has been substituted.

PRODUCT & SPECIFICATION GRAPHIC

One model. Matching images and ratings.

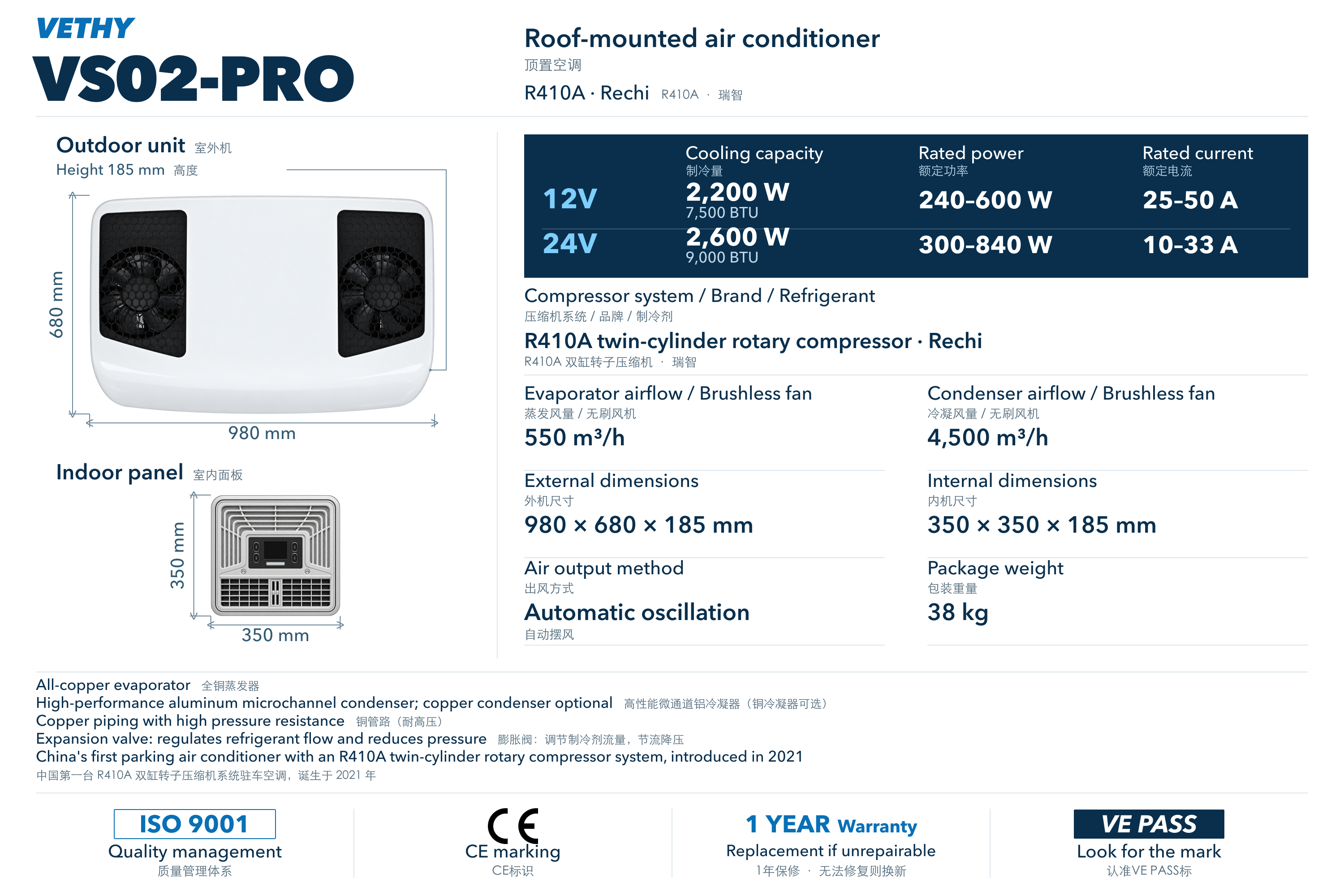

VETHY VS02-PRO complete product and parameter graphic, showing both voltage configurations

Select the graphic to open the full-size original.

Download VS02-PRO specification graphic

Plan the vehicle installation

Send the vehicle make, model, year, cab photos, available mounting space and electrical supply. Confirm roof structure, clearance, wiring protection and service access before choosing the installation arrangement.

For fleet procurement, include pilot quantity, annual demand, destination and required spare parts. Request a configuration-specific quotation and sample acceptance plan.

Discuss VS02-PRO with VETHY
